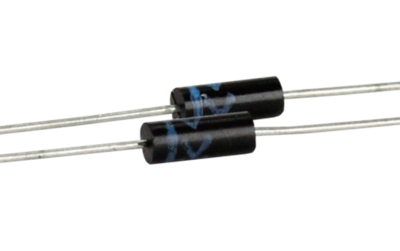

HVCA axial leaded high temperature diodes suitable for medium or high voltage bridges or rectifier circuits which find application in power supplies and inverters.
Where space or temperature is critical these components can provide a simple solutions.
To discuss your requirement please call +44 (0)1793 784389 and talk to a member of our technical sales team.
HVA series
| Part # | VRRM (V) | VF (V) | IFAVM (mA) | IR (μA) | IFSM (A) | TJMAX (°C) | VZ (V) | ERSM (mJ) | Op. Temp (°C) | Store Temp (°C) | L (in.) | D (in.) | d (in.) | l (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HVA3K | 3000 | 3.2 | 800 | 0.5 | 30 | 175 | 4500 | 15 | -55 to 175 | -55 to 175 | 0.2 | 0.12 | 0.032 | 1 |
| HVA5K | 5000 | 5 | 500 | 0.5 | 30 | 175 | 7500 | 35 | -55 to 175 | -55 to 175 | 0.2 | 0.12 | 0.032 | 1 |
HVTD series
| Part # | VRRM (V) | VF (V) | IFAVM (mA) | IFAVM (mA) | IFAVM (mA) | IR (μA) | IR (μA) | IR (μA) | IFSM (A) | TJMAX (°C) | Op. Temp (°C) | Store Temp (°C) | L (in.) | D (in.) | d (in.) | l (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HVTD3 | 3000 | 25 | 50 | — | 1 | 0.5 | — | 18 | 3 | 200 | -55 to 200 | -55 to 175 | 0.47 | 0.12 | 0.023 | 0.94 |
| HVTD5L | 5000 | 25 | 35 | 5 | — | 0.5 | 5 | — | 3 | 175 | -55 to 175 | -55 to 175 | 0.47 | 0.12 | 0.023 | 0.94 |
| HVTD5 | 5000 | 15 | 50 | 5 | — | 0.5 | 15 | — | 3 | 175 | -55 to 175 | -55 to 175 | 0.32 | 0.12 | 0.023 | 0.94 |
| HVTD6 | 6000 | 25 | 35 | 5 | — | 0.5 | 7.5 | — | 3 | 175 | -55 to 175 | -55 to 175 | 0.47 | 0.12 | 0.023 | 0.94 |
| HVTD7 | 7000 | 25 | 35 | 5 | — | 0.5 | 7.5 | — | 3 | 175 | -55 to 175 | -55 to 175 | 0.47 | 0.12 | 0.023 | 0.94 |
HVTDR series
| Part # | VRRM (V) | VF (V) | IFAVM (mA) | IFAVM (mA) | IR (μA) | IR (μA) | IFSM (A) | TJMAX (°C) | TRR (nS) | TRR (nS) | Op. Temp (°C) | Store Temp (°C) | L (in.) | D (in.) | d (in.) | l (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HVTDR3 | 3000 | 25 | 25 | 1 | 0.2 | 14 | 3 | 175 | 100 | 300 | -55 to 175 | -55 to 175 | 0.26 | 0.1 | 0.023 | 0.94 |
| HVTDR4 | 4000 | 25 | 25 | 1 | 0.2 | 15 | 3 | 175 | 100 | 300 | -55 to 175 | -55 to 175 | 0.26 | 0.1 | 0.023 | 0.94 |
| HVTDR5 | 5000 | 25 | 25 | 1 | 0.2 | 16 | 3 | 175 | 100 | 300 | -55 to 175 | -55 to 175 | 0.26 | 0.1 | 0.023 | 0.94 |
| HVTDR6 | 6000 | 25 | 25 | 1 | 0.2 | 18 | 3 | 175 | 100 | 300 | -55 to 175 | -55 to 175 | 0.26 | 0.1 | 0.023 | 0.94 |
| HVTDR7 | 7000 | 25 | 25 | 1 | 0.2 | 20 | 3 | 175 | 100 | 300 | -55 to 175 | -55 to 175 | 0.26 | 0.1 | 0.023 | 0.94 |
Useful Documents
HVA Series
HVA Series Datasheet
HVTD Series
HVTD3 Datasheet
