Programmable Power Supplies

96W benchtop units to 250kW power cabinets

PPM supply programmable power supplies from 96W benchtop units to 600kW power cabinets.

Low voltage or high voltage

Low power units (<5kW) are grouped as either high voltage (up to 30kV) or low voltage (<650V).  High power units are available from 3kW to 250kW.

 Hardware formats:

  • Bench-top units
  • 19″ rack units – 1U, 2U and 3U high
  • Free-standing cabinets

Output Voltage Output Voltage Max. Output Current Max. Power Output
Low power/low voltage 6-650V 0.3A-600A 96-5200W
Low power/high voltage 0.1 – 30V 1-3000A 20 – 2000W
High power 6 V – 60 kV 50 mA – 10 kA 3 kW – 250 kW

EVO 2U Series

The EVO series of programmable high voltage power supplies is a range of versatile power supplies at a competitive price. They offer class-leading stability and accuracy and use the latest power electronics techniques to deliver 2kW and 3kW outputs in 2U form factor. Remote programming is achieved via RS-232 or Ethernet. Front panel controls are simple and the interface is intuitive to use. EVO units are suitable for research in the analytical, industrial, automotive and light engineering sectors.

Compared to an equivalent 3kW regulated DC power supply, the EVO is approximately half the weight, half the size and delivers double the stability of line and load regulation – for a lower price.  A 14-day, no obligation trial period is available for customers to test the units.

Part Number Max. Voltage (kV) Max. Current (mA) Max. Power (W)
EVO 1500-1400 1.5 1400 2000
EVO 1500-2000 1.5 2000 3000
EVO 5000-400 5 400 2000
EVO 5000-600 5 600 3000
EVO 10000-200 10 200 2000
EVO 10000-300 10 300 3000

Standard features:

  • Overvoltage and overcurrent protection
  • Limit functions for voltage and current
  • Interlock function
  • Easily configurable diverse I/O contacts
Optional functionality:

  • Ramp function
  • Arc detection
  • Fast discharge circuit
  • Electrical polarity reversal

Genesys Programmable Power Supplies

The Genesys series of 10kW and 15kW programmable DC power supplies is now available with output voltages of up to 1500V. These new models have the same dimensions as the existing 7.5V to 600V models – 19” wide and 3U high.  The units can operate in either constant current or constant voltage modes and accept either three-phase 400V AC or 440V AC inputs.

  • Wide AC input voltage range for 400V AC input (342V AC–440V AC)
  • High efficiency (>93 per cent)
  • Fast up/down-programming response time (17ms/20ms)
  • Output isolation up to 1500V
  • Built-in isolated remote analogue 5V/10V programme/monitor
  • Two-wire parallel current share
  • Lightweight (< 31.7kg)
  • Cooling fan speed control for reduced noise and extended fan life.
Genesys power supplies

Advanced Master/Slave Mode

Higher-power systems can be configured using the master/slave parallel operating mode which configures the master unit to be the single point for programming, measurement and status of the total current of the paralleled system. Consequently, up to four units can operate as a single 60kW power supply.

Digital Interface

The entire Genesys family supports 16-bit RS-232/RS-485 Multi-Drop digital interface, allowing up to 31 power supplies to be controlled in a daisy-chain over the RS-485 communication line. Other optional interfaces include:

  • LXI Class C compliant LAN
  • IEEE (IEEE488.2 and SCPI-compliant) Multi-Drop digital interfaces
  • Selection of instrument drivers such as NI LabVIEW and NI LabWindows. Isolated analogue programming/monitor interface options use 0-5V/0-10V or 4-20mA control.

Safety Features

Safety features included are:

  • Safe Start – power supply returns to its last operational setting configuration after a power interruption but with the output disabled
  • Auto Re-start – power supply returns to the last used operation settings after a power interruption
  • Last Setting Memory – retains settings such as the Output voltage/current, Output ON/OFF, OVP/UVL level, Foldback and Start-Up mode at each AC Input turn-off sequence
  • Built-in protective functions – e.g. over voltage protection (OVP), under voltage limit (UVL), fold-back protection (FOLD) and over-temperature (OTP) protection.

All units are shipped with a 5-year warranty.

Low voltage Power supplies <600V

Z+ series – 200W, 400W, 600W & 800W DC programmable

lam11020
  • 2U height bench top type
  • Up to six units in a 19-inch rack
  • Support for external analog control
  • Control possible by external voltage or current
  • Built-in USB, RS-232, and RS485 interfaces
  • Optional LAN, GPIB, and isolated analog interfaces
  • Master-slave parallel operation (up to 6 units)
  • In-series operation (up to 2 units)
Z+ series datasheet icon v2

LNG Series –  Laboratory power supply to 350V / 6A

  • Linear control
  • Output voltage up to 350V
  • Output current up to 6A
  • Residual ripple < 0.1% pp
  • Stability < 0.1% over 8h
  • 3-digit digital displays for voltage and current
  • Analog interface
  • Sustained short-circuit resistant
Heinzinger LNG PPS
Heinzinger LNG datasheet icon v2

ZUP series – Zero-up constant voltage / constant current 200W-800W

ZUP 200

  • Constant voltage / Constant current
  • Built-in RS232 & RS485 interface
  • Optional GP-IB interface
  • External voltage or resistor programming
  • Last setting memory
  • Safe restart or automatic restart modes
  • Input current harmonics : EN61000-3-2 Class A
ZUP datasheet icon

PTN Series –  up to 600V / 200A

Heinzing PTN
  • Double-stabilised linear control
  • Output voltage up to 600V
  • Output current up to 200A
  • Residual ripple < 0.01% pp
  • Stability < 0.01% over 8h
  • 3.5-digit digital displays for voltage and current, analog displays on request
  • Analogue interface (optional digital interface)
  • Sustained short-circuit resistant
  • Sense-connection
PTN series datasheet icon

High Power Programmable Power Supplies

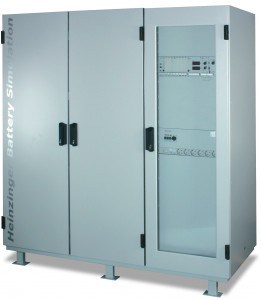

PTN3p series – up to 5000A / 600V

  • Double-stabilised linear control
  • Output current up to 5000A
  • Output voltage up to 600V
  • Residual ripple < 0.01% pp
  • Stability < 0,01% over 8h
  • 3.5-digit digital displays for voltage and current,
  • Analogue displays on request
  • Analog interface (digital interface available as option)
  • Sustained short-circuit resistant
  • Sense-connection
  • 19″ rack on columns or casters
  • Customized versions e.g. for 2-quad operation

PTN3p_gross
PTN 3p series datasheet icon

Genesys 3U series 10kW/15kW – up to 1500V / 1000A

Gen3U TDK copy cover web

• Built in RS-232/RS-485
• Standard Multi-Drop (RS-485) Slave Interface
• Global Commands for RS-232/RS-485
• Last Setting Memory
• High Resolution 16 bit ADC’s & DAC’s
• Continuous Encoders for Voltage and Current Adjustment
• Parallel Operation with Active Current Sharing and Current Sum
• Independent Remote ON/OFF and Remote Enable/Disable
• Remote Analog Programming and Monitoring
• Reliable Modular and SMT Design
• Optional built-in LXI Compliant LAN interface
• Optional built-in IEEE interface
• Optional built-in Isolated Analog Programming
• Labview Drivers/GUI

PTNhp series – High precision up to 5A / 600V

PTNhp Programmable Power Supply

  • Double-stabilised linear control
  • Output current up to 5A
  • Output voltage up to 600V
  • Residual ripple < 0.001% pp
  • Stability < 0.001% over 8h
  • 3.5-digit digital displays for voltage and current
  • 4.5 digit displays on request
  • Analog interface (optional digital interface)
  • Sustained short-circuit resistant
  • Sense-connection

PTNhp series datasheet icon

ERS Series – Bidirectional High Performance with Active Energy Recovery

The bidirectional Heinzinger ERS test bench energy system is a mains recovery unit series. Typical applications are testing of vehicle energy systems,  electric drives, battery simulation, component testing and as a general energy sink with energy recovery.

  • Highly dynamic DC source and load
  • 1 channel and 2 channel versions available
  • Operation using touch screen or interface
  • Galvanic isolation using medium-freq transformers
  • Sense function for stabilisation of voltage drops
  • Operation as source/sink or source or load
  • Continuous transition between source and load
  • Regulated source and load operation
  • Adjustable internal resistance regulation
  • Output for status signals
  • Output regulation configurable
  • Water cooling for approx. 18 °C supply temperature
  • Output floating and short-circuit-proof
  • Power multiplication possible using parallel operation
Heinzinger ERS

ERS datasheet

PNY series – SCR controlled low voltage power supplies up to 10,000A / 600V

PNY Programmable power supplies

  • Output current up to 10,000A
  • Output voltage up to 600V
  • Residual ripple < 0.1% pp
  • Stability < 0.1% over 8h
  • 3.5-digit digital displays for voltage and current
  • Analogue displays on request
  • Analog interface (digital interface avalible as option)
  • Sustained short-circuit resistant
  • Sense-connection
  • 19″ rack on columns or casters
  • Customized versions e.g. for 2-quad operation
PNY series datasheet icon

PCU series for Magnet Applications

  • Extremly precise power supply for magnets
  • Modular – parallel operation to increase output power
  • Zero-Voltage-Switching Technology
  • Optimum ratio between power density/accuracy
  • DCCT current measurement
  • Programmable current ramp function
  • Analog (0…10V) and digital interface (RS422)
  • Controller configuration/load balancing possible
  • Air cooling (optional water cooling)
  • Trigger input for measurements signals
  • Output short-circuit and open-circuit proof
  • Optional pole-reversal unit

PCU series

PCU series datasheet icon
