Detail

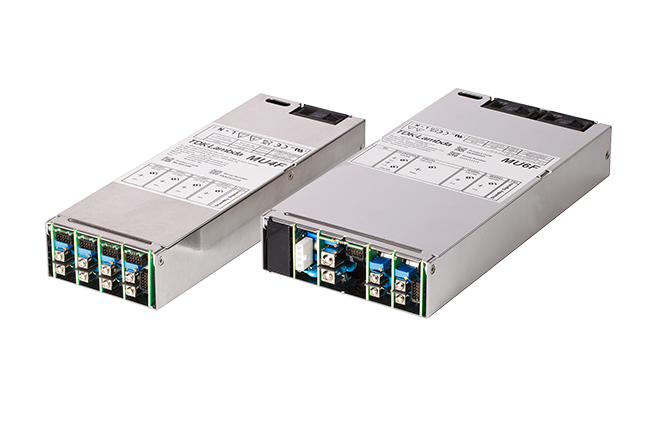

The MU series combines up to 94% efficiency with configurable output modules from 96W to 1008W and a continuous voltage range from 3.3V to 105.6V, allowing a single platform to replace multiple discrete supplies and reduce overall system complexity.
Patented intelligent fan control uses multipoint thermal monitoring to adjust airflow dynamically, maintaining cooling performance while minimising audible noise for use in noise-sensitive environments.
Compliance with IEC 60601-1, IEC 62368-1, IEC 61010-1 and Class B EMC standards helps reduce certification burden and supports faster system approval cycles.
Models
| Model | No. of outputs | Input voltage | Output voltage/ current | Output power | Power factor | Rise time | Line regulation | Load regulation | Construction |
|---|---|---|---|---|---|---|---|---|---|
| MU4 | Up to 5 | 85-264 Vac (derate by 1 % Vac below 100 Vac) | 3.3 – 104 V / 54 A | 600 W (Low line) 800W (Hugh line) | >0.9 (at 230 Vac, 100% load) | <75 ms | 0.1 % for 90-264 Vac inout change | 1% for 0-100% load change | Enclosed |
| MU6 | Up to 13 | 85-264 Vac (derate by 1 % Vac below 100 Vac) | 3.3 – 105.6 V / 76 A | 1.2 kW (Low line) 1.5 kW (High line) | >0.9 (at 230 Vac, 100% load) | <75 ms | 0.1 % for 90-264 Vac inout change | 1% for 0-100% load change | Enclosed |
